DuffyGeos February 8, 2015 Author Share February 8, 2015 Made all the alterations this past week we needed to continue with plumbing. Rob was over today and we knocked out some work. Needed to buy another 60' of pipe for today, and another 20-30 fittings. After 5 hours of work and we made a fair bit of progress. One more day like today of plumbing and I think we will be moving water! I can't wait!! Link to comment Share on other sites More sharing options...
John Ford February 8, 2015 Share February 8, 2015 Tighten up! Looking forward to some more pictures Link to comment Share on other sites More sharing options...
DuffyGeos February 8, 2015 Author Share February 8, 2015 Tighten up! Looking forward to some more pictures I will get some up tomorrow. Thanks. Link to comment Share on other sites More sharing options...
Seahorseconservancy February 8, 2015 Share February 8, 2015 photos please Link to comment Share on other sites More sharing options...

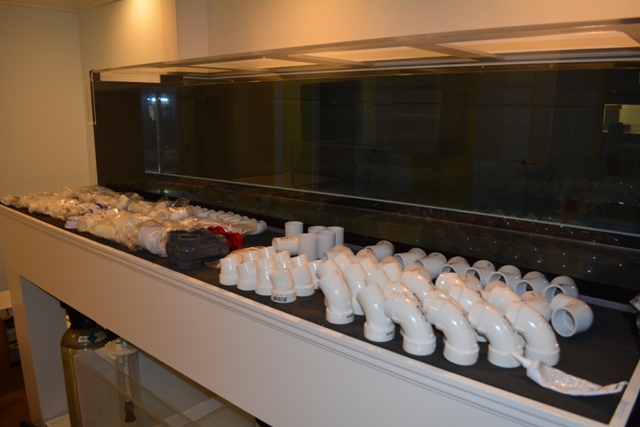

DuffyGeos February 9, 2015 Author Share February 9, 2015 Now some of the details of the plumbing. Planning took a couple hours of Rob and I going over the options, how I wanted the system to function, easy of maintenance, clean set up, and ways to add or modify it in the future. A plumbing item list was made, and then modified as we designed as we dry fit the lines. Link to comment Share on other sites More sharing options...

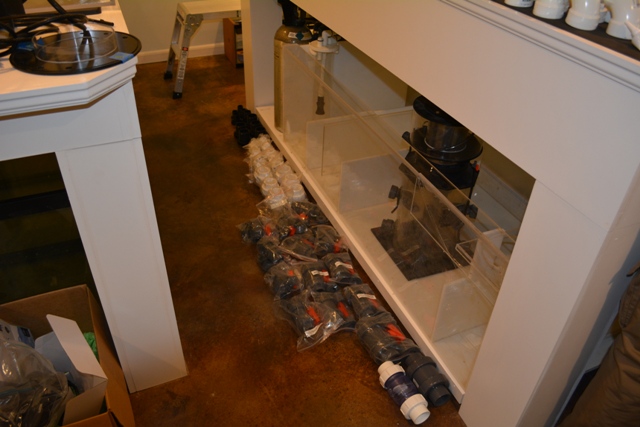

DuffyGeos February 9, 2015 Author Share February 9, 2015 Valves and unions, unions and valves..........I am starting to learn all the pieces. Since I have never done a tank with a union (or a bulkhead), it has taken a little to learn all the different pieces and what they are called. Valves, no problem.... 1" 90 degree slip x thread female fitting....took a little more time. Link to comment Share on other sites More sharing options...

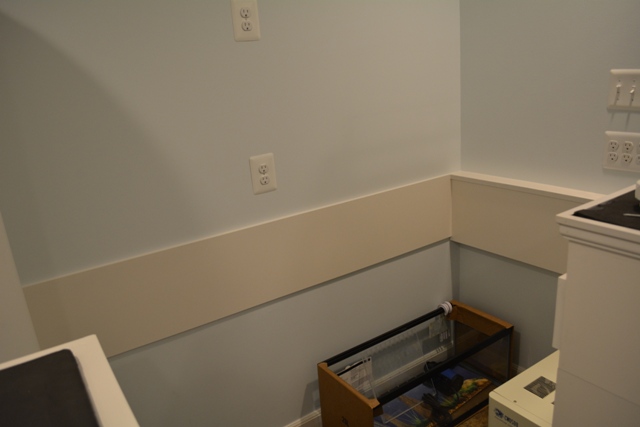

DuffyGeos February 9, 2015 Author Share February 9, 2015 (edited) After the first day of actual plumbing I decided I needed a board to mount the four pipe runs that would be mounted to this back wall. Then the wall to the right had to be built built out for the board so it could pass the leg of the stand smoothly. This also created a small shelf. This also entailed moving an outlet that was at the board level. Edited February 9, 2015 by DuffyGeos Link to comment Share on other sites More sharing options...

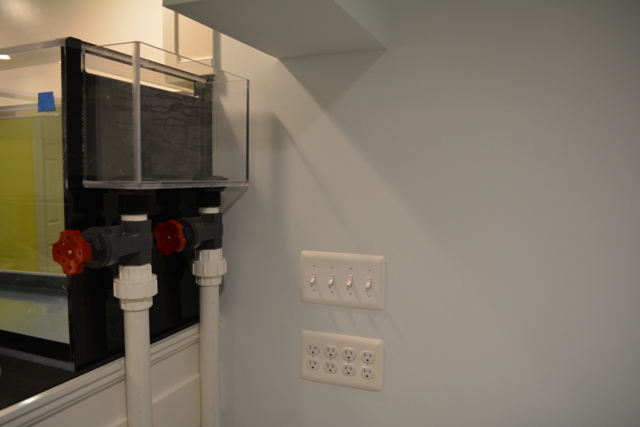

DuffyGeos February 9, 2015 Author Share February 9, 2015 1.5" gate valves on the right side of the tank. We set them sideways to gain another 6" of working room between the right side of the tank, and the counter with the sink on the right (not in the picture). Link to comment Share on other sites More sharing options...
monkiboy February 9, 2015 Share February 9, 2015 i really enjoy plumbing photos and design, thanks for posting up some photos of the process. you're in great hands with rob's guidance, too, given his years of experience and know-how. keep us updated as you have time. I appreciate the deliberate and diligent effort - if anything, it just build the suspense Link to comment Share on other sites More sharing options...
DCReefer1964 February 9, 2015 Share February 9, 2015 Loving it !!!!! Man I could imagine the all the sweet smelling PVC primer and glue in the Air. Link to comment Share on other sites More sharing options...
DuffyGeos February 9, 2015 Author Share February 9, 2015 i really enjoy plumbing photos and design, thanks for posting up some photos of the process. you're in great hands with rob's guidance, too, given his years of experience and know-how. keep us updated as you have time. I appreciate the deliberate and diligent effort - if anything, it just build the suspense Rob is the man when it comes to plumbing tanks. I even commented to him this past weekend " Boy you must have been great playing with Legos as a kid!" The way he throws multiply fitting together. We have some tough angles to work around and so far it looks pretty clean. Loving it !!!!! Man I could imagine the all the sweet smelling PVC primer and glue in the Air. Thank you! Yea, I think we were getting a little buzzed after 5 hours, lucky the room exhaust fan was on and I had the register fully opened. But when I would go up stairs and come back down you could really smell it as you walked into the room. Link to comment Share on other sites More sharing options...

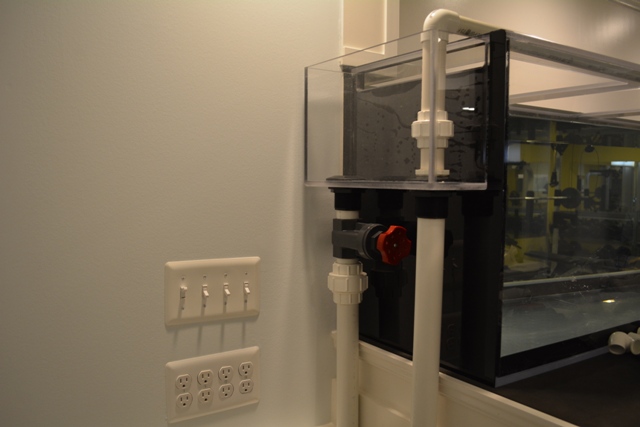

DuffyGeos February 9, 2015 Author Share February 9, 2015 Here is the left side of the tank with the external overflow. It was suppose to be two overflows, but since the other side already has two overflows we decided to use one for the holes for a return line. I had originally wanted to run the return up the wall and over the too, but once the tank was installed and we started laying things out the MH lights would have been in the way, or it would not have looked very clean to make the return run which will dump into the tank in two different locations about a third and two thirds down the tank. This also allow me to undo the union in the overflow box and remove the entire return line above the tank in one piece. Link to comment Share on other sites More sharing options...

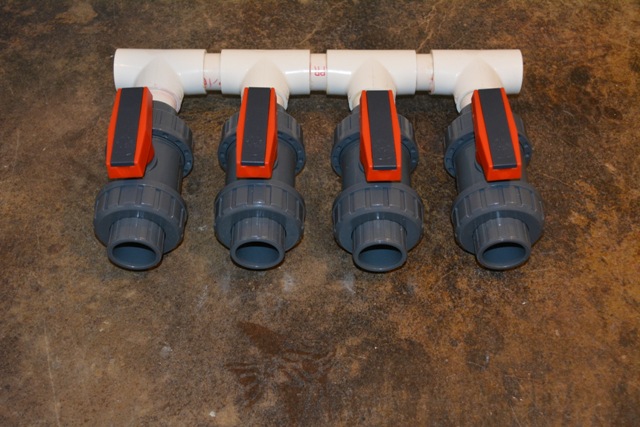

DuffyGeos February 9, 2015 Author Share February 9, 2015 Here is the manifold being built. We will use PVC cleaner to remove any of the red or black writing after everything is installed. Link to comment Share on other sites More sharing options...
WilRams February 9, 2015 Share February 9, 2015 I don't know why I enjoy looking at plumbing pictures so much. Nice work. Glad your taking the writing off. I have used acetone before. Works well. Link to comment Share on other sites More sharing options...
DuffyGeos February 10, 2015 Author Share February 10, 2015 I don't know why I enjoy looking at plumbing pictures so much. Nice work. Glad your taking the writing off. I have used acetone before. Works well. I was thinking of cleaning all the pipes before, but Rob spends some time trying to line the pipes up so the writing does not show, so no need clean all 100' l.f. of pipe. Link to comment Share on other sites More sharing options...

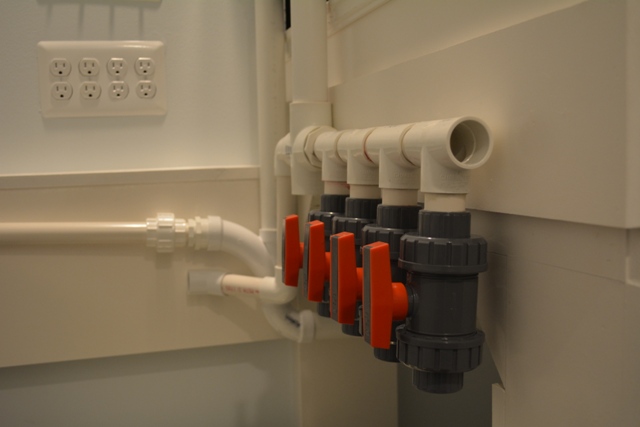

DuffyGeos February 10, 2015 Author Share February 10, 2015 Here is how the manifold will look installed, still just dry fit right now. This is the left side of the tank. The pipe running to the left is the drain line for the main frag tank on the other side of the room. There will be three more lines that will go that direction. One which is T-ed off from the unfinished pipe which is the return The other two will be the return and the drain line for the QT frag tank on their own system. Link to comment Share on other sites More sharing options...

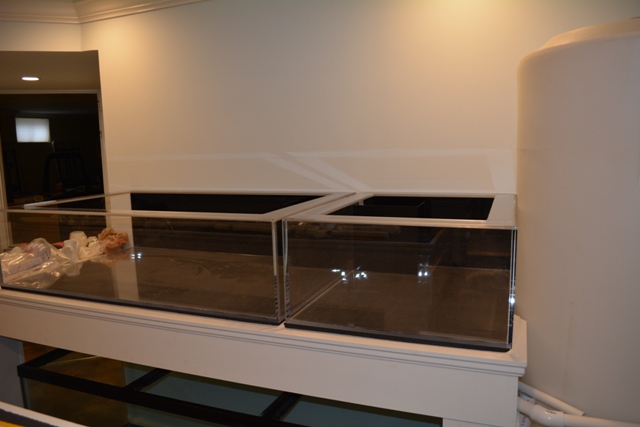

DuffyGeos February 10, 2015 Author Share February 10, 2015 A couple other changes were suggestions by Rob that I did not think about. One was to separate the two frag tanks so that 1- No water could be splashed between them, since they were on different systems. 2- Any salt creep that does show up (which it will no matter how careful I am) will not be able to be cleaned if the tanks are right next to each other and both sides are clear. This would probably drive me nuts. So the tanks are not separated by about an inch so they can be cleaned on the outside. This took some cutting of supports and the top of the frag table so that the tanks could shift and we could still tighten the bulkheads. Two was to cover the back of the frag tanks with window tint so I could put them next to the wall and would not see any salt creep between the wall and the frag tanks. So the frag tanks got a limo black tint on their backs. Link to comment Share on other sites More sharing options...
