BowieReefer84 December 13, 2012 Share December 13, 2012 I moved my tank on a handtruck and it fractured the glass slightly at the bottom of a side panel in the middle. The bottom of my tank is a floating panel, and the fracture is beneath the seam. I didn't even think twice. As Tom said the tank contains a lot of weight, but the distribution is spread out a lot. I know how you feel. I took posession of a perfect tank, and messed it up in my custody. I have no concern, but probably would never sell it this way. Tough call man. Link to comment Share on other sites More sharing options...
rtsusc83 December 13, 2012 Share December 13, 2012 Wow! I feel for you. You are getting a lot of great suggestions and recommendations and I hope in the end everything works out! As a rule of thumb for every 100 ft, you experience 44PSI, if your tank height is 3 ft, that chip will experience about 1.3 psi. So a nickel size chip will see approximately 1 lb of of static force. Will that be enough to be of concern? Yes, but It is all relative on what risk you are willing to accept. Another analogy is look at how bottom bulkheads are installed and sealed. It does not take much torque to create good seal. Just my thoughts and I could be way off someone may be able to correct my rough analysis. Link to comment Share on other sites More sharing options...
pizzaguy December 13, 2012 Author Share December 13, 2012 A lot of great advice and I appreciate it. We will have it up and running in no time. My goal is to have water in it the week of Xmas. That's my plan anyways. Now that the pump problem is solved I should have everything to at least get the cycle started except for my light bracket. Link to comment Share on other sites More sharing options...
zoozilla December 14, 2012 Share December 14, 2012 That's great news. Please post plenty of pics. A lot of great advice and I appreciate it. We will have it up and running in no time. My goal is to have water in it the week of Xmas. That's my plan anyways. Now that the pump problem is solved I should have everything to at least get the cycle started except for my light bracket. Link to comment Share on other sites More sharing options...
pizzaguy December 17, 2012 Author Share December 17, 2012 Question. Do you think a mag12 is enough for a return and a manifold for 3 reactors or is that simply asking to much,out of the pump? Link to comment Share on other sites More sharing options...
pizzaguy December 17, 2012 Author Share December 17, 2012 Anybody? Link to comment Share on other sites More sharing options...
Origami December 17, 2012 Share December 17, 2012 The question is pretty broad. Do you have any idea of the flow requirements for each reactor? (Sent from my phone) Link to comment Share on other sites More sharing options...
pizzaguy December 18, 2012 Author Share December 18, 2012 Not really. I guess the biggest thing I was trying to do is salvage the 3 way manifold that came with the tank. I did pick up my pipe for my light bracket that hopefully will be built Wednesday. It's only 1/2solid pipe so should be very sleek. Link to comment Share on other sites More sharing options...
Origami December 18, 2012 Share December 18, 2012 Well, the Mag-12 is a decent pump that can deliver good pressure. Assuming a 5' lift, their spec sheet shows that it can deliver 1120 gph. If I assume 20% reduction due to friction losses, it's down to 900 gph. Assuming 75 gph through each reactor (a completely fabricated number), you're down to 675 gph for the main tank. Your tank holds about 135 gallons without rock and such. Thus, 675 gph is about a 5x turnover through the sump, which I think is adequate. I think that you'll be fine, but hooking it up and turning it on will be the real test. Link to comment Share on other sites More sharing options...
OldReefer December 18, 2012 Share December 18, 2012 If I was going with a manifold, I would seriously consider an external pressure-rated pump like a Blue Line 55, or Panworld. You will get more flow through the plumbing and less heat in the tank. They also do not get limed up like the mags. Link to comment Share on other sites More sharing options...

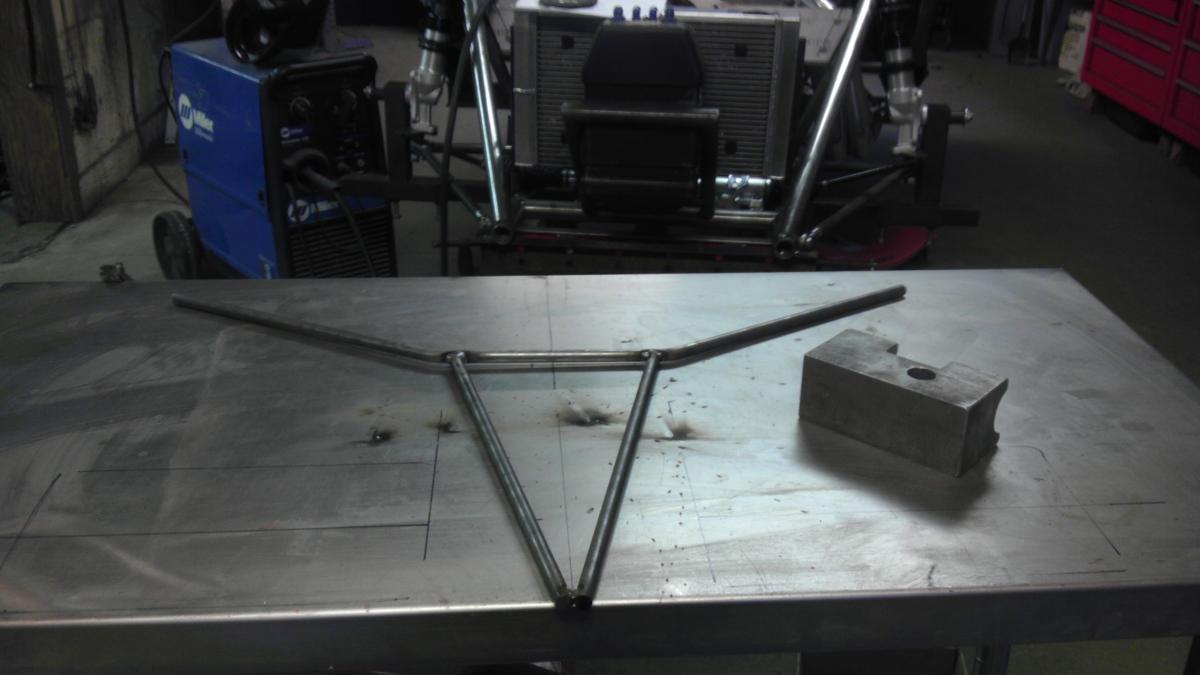

pizzaguy December 19, 2012 Author Share December 19, 2012 (edited) more progress pics. light bracket is made and dropped off at the powdercoat shop. Edited December 19, 2012 by pizzaguy Link to comment Share on other sites More sharing options...
pizzaguy December 19, 2012 Author Share December 19, 2012 more Link to comment Share on other sites More sharing options...
pizzaguy December 19, 2012 Author Share December 19, 2012 more Link to comment Share on other sites More sharing options...
surf&turf December 20, 2012 Share December 20, 2012 This is going to look great!! Saw this tank in person tonight and there is no way the little chip it has in it did any structural damage. Hopefully by next week it will be wet. Link to comment Share on other sites More sharing options...

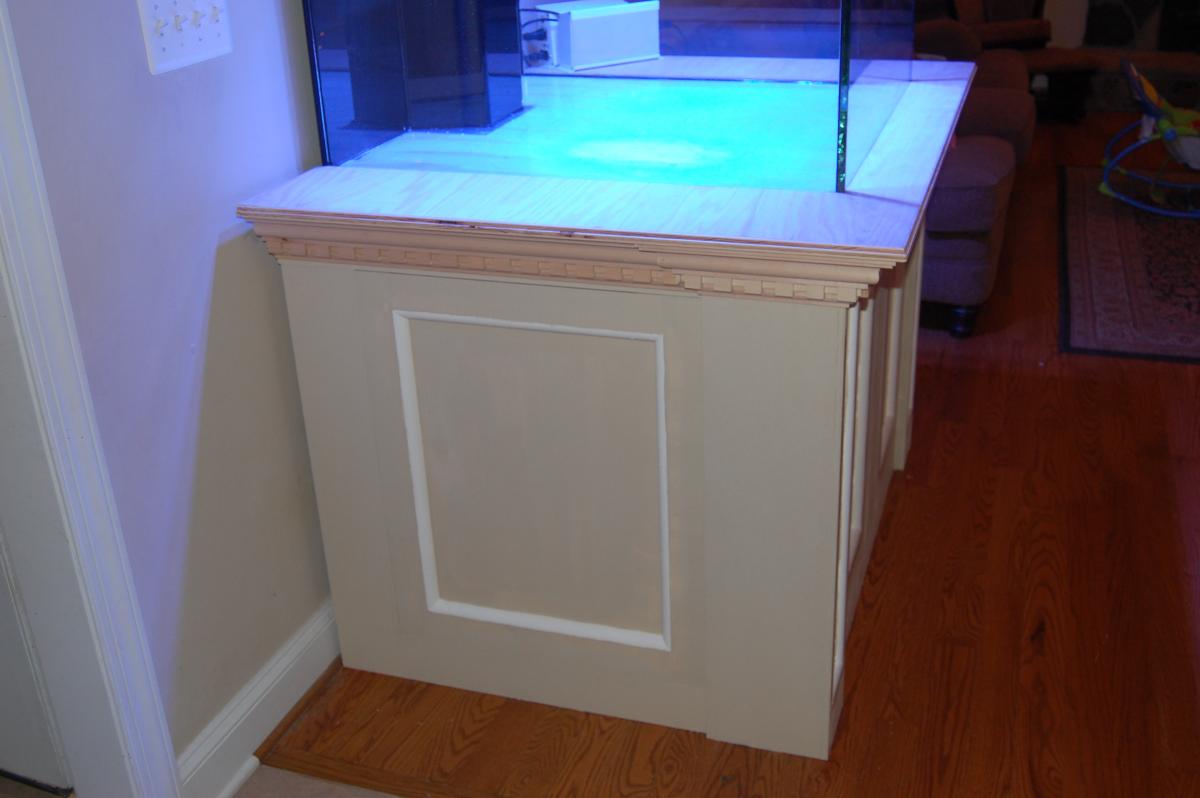

pizzaguy December 27, 2012 Author Share December 27, 2012 progress. wont be long now!!! Link to comment Share on other sites More sharing options...
pizzaguy December 27, 2012 Author Share December 27, 2012 more Link to comment Share on other sites More sharing options...
RJT December 27, 2012 Share December 27, 2012 Looks good. All of your traveling and hard work is coming to fruition. You should disable,or put in a gfi outlet for that outlet under the tank imo Link to comment Share on other sites More sharing options...
Coral Hind December 27, 2012 Share December 27, 2012 It's all looking really nice and the light bracket is awesome. Link to comment Share on other sites More sharing options...
surf&turf December 27, 2012 Share December 27, 2012 Wow, it looks great, awesome build. Link to comment Share on other sites More sharing options...
ridetheducati December 27, 2012 Share December 27, 2012 Looking good. How do you plan to plumb the external skimmer? The skimmer drain must be above the sump water level. Link to comment Share on other sites More sharing options...
Curtis Scott December 27, 2012 Share December 27, 2012 I love how this setup is shaping up. That light braket is genius. Link to comment Share on other sites More sharing options...
rtsusc83 December 27, 2012 Share December 27, 2012 Looks great! Your sturdy and awesome stand makes your tank pop!! Got the reef savvy all plumbed and will transferring my bc29 this weekend. Will post pics also. Link to comment Share on other sites More sharing options...
pizzaguy December 27, 2012 Author Share December 27, 2012 Looking good. How do you plan to plumb the external skimmer? The skimmer drain must be above the sump water level. Please don't tell me you mean the skimmer itself must be above the sump water level!!! If so I'm lost and need suggestions. Link to comment Share on other sites More sharing options...
pizzaguy December 27, 2012 Author Share December 27, 2012 And thank you everyone I can't wait to get water in this thing. Link to comment Share on other sites More sharing options...
ridetheducati December 27, 2012 Share December 27, 2012 Please don't tell me you mean the skimmer itself must be above the sump water level!!! If so I'm lost and need suggestions. In order for the skimmer to work properly, the drain must be above the sump water level. External skimmers rely on gravity to evacuate the water, otherwise excessive back pressure and skimmer overflowing will occur. Ridetheducati Adage: This hobby is not only about keeping wonderful animals but analyzing and solving problems. Link to comment Share on other sites More sharing options...
