jnguyen4007 June 11, 2008 Share June 11, 2008 (edited) On the DI bypass, which output is the one that should be connected to the drain line? The upper output next to the open and close valve or the bottom one? Edited June 11, 2008 by jnguyen4007 Link to comment Share on other sites More sharing options...
wreck June 13, 2008 Share June 13, 2008 On the DI bypass, which output is the one that should be connected to the drain line? The upper output next to the open and close valve or the bottom one? Don't know exactly how your RO/DI is setup but to bypass the DI(to make filtered drinking water?) you should use the line coming out of the RO membrane that goes into the DI. Link to comment Share on other sites More sharing options...
jnguyen4007 June 13, 2008 Author Share June 13, 2008 Don't know exactly how your RO/DI is setup but to bypass the DI(to make filtered drinking water?) you should use the line coming out of the RO membrane that goes into the DI. where the output from the membrane that normall goes into the DI, it goes into the input side of the DI bypass. That part I'm aware of. What I wasn't so sure is the output side since there is two output, one on top next to the open/close valve, and one on the bottom that's on the other side of the T valve. I think I set up mine correctly. If I have the DI bypass valve open, then water flows out of the top output. That looks like where it should be connected to the drain valve. Link to comment Share on other sites More sharing options...

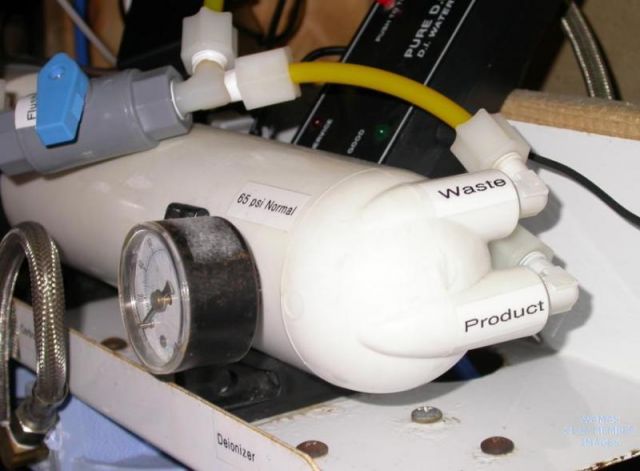

Jon Lazar June 14, 2008 Share June 14, 2008 Neither of the valve's two outputs should go to the drain. The only water that should go down the drain is the top outlet on the actual RO housing where the "waste" water comes out. One valve output should go to the DI, and the other should go to wherever you store your DI bypass water. Remember that the DI bypass water is the good "product" water from the RO membrane. Does that help? Jon where the output from the membrane that normall goes into the DI, it goes into the input side of the DI bypass. That part I'm aware of. What I wasn't so sure is the output side since there is two output, one on top next to the open/close valve, and one on the bottom that's on the other side of the T valve. I think I set up mine correctly. If I have the DI bypass valve open, then water flows out of the top output. That looks like where it should be connected to the drain valve. Link to comment Share on other sites More sharing options...
Air Water and Ice June 16, 2008 Share June 16, 2008 Hello, On our units, the DI bypass serves two purposes. The first is to bypass the DI and get just RO water (which we have another vavle for that on the line normally - like our Typhoon III). The second is to aid in the flushing of the membrane. This is the top part of the assembly. It goes to the drain line and is installed after the flow restrictor. I hope this clears some of the confusion up. Regards, Air, Water & Ice staff Link to comment Share on other sites More sharing options...
