DIY Ecotech Battery Backup


SirLord

Recommended Posts

So I finally finished a project that I've been putting off for a few months.



The goal was to make one of these:

EcoTech-Marine-Vortech-Battery-Backup-99

Which Ecotech will sell you for about $165. I considered this to be insane, so I made one myself.



Ecotech's battery is 12V at 18AH which would run my MP10 for 72 hours. I made a battery backup in 30 minutes for less than $20 that will last for up to 30 hours.



If you search online, lots of people rig up lead-acid batteries to a trickle charger, and that works too, but there's a simpler solution out there. Enter the Belkin Battery Backup, which can be had for $17 used off of Amazon. I got mine earlier this year with a brand-new battery. Apparently there's a ton of these on the market and they can be had for pennies. Best thing, they out 12VDC, contain an integrated float charger, and have an audible alarm for when the power goes out or the battery is going bad.



I'd put in a detailed guide, but it's really too easy to make this. Cut the cord from the backup and splice in the correct plug (center pin positive, by the way), and then you're done. I added a 1-amp fuse just in case. Works like a charm. Power goes off, alarm rings, and my MP10 switches to 50% flow at a constant rate until primary power is restored.



Also, If you're looking for a battery backup for your apex...the plug that the belkin backup comes with fits perfectly and outs the correct voltage. So this is an instant apex controller backup for <$20. So buy two.







Link to comment
Share on other sites

We need the solar to tesla battery pack to happen without costing an arm and a leg so I can have AC and heating too.

Link to comment
Share on other sites

Hey, SirLord. What size plug is used for the the EcoTech end?

The Belkin backup battery solution has also been used to back up the Neptune Apex.

Sent from my LG-V510 using Tapatalk

Link to comment
Share on other sites

You'll need a 1.3mm male plug (the really skinny ones). I salvaged one from an old cell phone charger that I purchased from Goodwill for $2. It used to be a very common size, so check flea markets before amazon.

Link to comment
Share on other sites

You'll need a 1.3mm male plug (the really skinny ones). I salvaged one from an old cell phone charger that I purchased from Goodwill for $2. It used to be a very common size, so check flea markets before amazon.

Great. Thanks!



Sent from my LG-V510 using Tapatalk

Link to comment
Share on other sites

  • 3 months later...

You'll need a 1.3mm male plug (the really skinny ones). I salvaged one from an old cell phone charger that I purchased from Goodwill for $2. It used to be a very common size, so check flea markets before amazon.

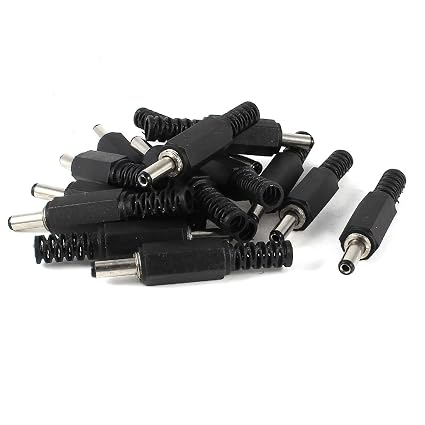

Is this the type of plug that you are referring to?

https://images-na.ssl-images-amazon.com/images/I/61zzFxiIi0L._SX425_.jpg

Link to comment
Share on other sites
